Engelbart’s Violin

Computing pioneer Alan Kay tells us that a computer is “an instrument whose music is ideas.” This seems like a beautiful metaphor, until you realize that we have somehow ended up in a world where the profession of musician is nearly unknown.  To continue with this analogy, let’s imagine that you were a child who loves music.  A child with Mozart’s inclinations, if not necessarily the full magnitude of his gifts.  Your parents buy you a toy piano, and you live out what are, unbeknownst to you, the brightest days of your life.  The years go by, adulthood comes, and you become – no, not a composer: an organ grinder.  (Or, if you like, a disk jockey.)  Or let’s say that you were an extraordinary lucky and dedicated child of music.  You manage to enroll in a conservatory.  Or perhaps you don’t, but instead you spend your free time away from your organ-grinding day job as an amateur composer.  And yet, in either case, you are still stuck playing out your original works on a hacked barrel organ.  Why?  It is because, in this imaginary nightmare world, the very idea of a musical instrument has faded away.  If someone wishes to hear music, he turns a crank or listens to the results of someone else doing so.  Or perhaps there are Victrolas in this world – and professional composers, the few which still exist, are expected to compose music by hand-etching grooves on a phonograph record, as if they were machinists working a peculiar sort of lathe.

Sadly, the above scenario is more truth than fiction – for computer enthusiasts.  There is a particularly cruel discrepancy between what a creative child imagines the trade of a programmer to be like and what it actually is.  When you are a teenager, alone with a (programmable) computer, the universe is alive with infinite possibilities. You are a god. Master of all you survey. Then you go to school, major in “Computer Science,” graduate – and off to the salt mines with you, where you will stitch silk purses out of sow’s ears in some braindead language, building on the braindead systems created by your predecessors, for the rest of your working life. There will be little room for serious, deep creativity. You will be constrained by the will of your master (whether the proverbial “pointy-haired boss,” or lemming-hordes of fickle startup customers) and by the limitations of the many poorly-designed systems you will use once you no longer have an unconstrained choice of task and medium.  To my knowledge, no child grows up “playing doctor” and still believes as a teenager (or even as a college student) that an actual medical practice resembles that activity.  Likewise, no one has a fully functional toy legal system to play with as a child, and as a result goes into law.  On the other hand, “adult” programming, seen from afar, is enough like child-programming to set the computer-enthusiast child up for just this kind of exceptionally cruel bait-and-switch.

Let’s say that you were one of the lucky ones – those who found a way to pay their bills via something resembling creative programming. Or, far more likely, you inhabit the salt mines by day, while letting your mind run free in your spare time.  Yet in both cases, you are doomed to work with the instruments of the salt mine!  Fortunately, in software there is room for some liberating deviancy – since bits are easy to rearrange and copy.  But as for hardware, you come home to the very same instrument of torture and mutilation you left behind in the cube farm: the typewriter keyboard.  (And, naturally, the “C machine.” But the latter is an overworked subject on this blog, and today we speak of other things.)

Virtually every profession has a concept of professional equipment.  It tends to be costlier, sturdier, more solid, more rewarding of dedicated training, more difficult to obtain, than equipment intended for amateurs.  And yet, among the tools of a modern programmer’s trade, we find scarcely anything which fits into this category.  Perhaps you are now sitting in front of your lovingly-maintained heirloom IBM “Model M” keyboard, but it is still a typewriter keyboard – and resembles, in many fundamental ways, the cheapest piece of disposable trashware found at your local electronics store.

Conventional wisdom in the technology community holds that the personal computer revolution gave everyone access to professional-grade computing equipment.  I hold the opposite view: that the very notion of professional equipment has been forgotten in our field (and to my knowledge, in our field alone.)

If the above is a delusion, I am proud to share this delusion with several persons whose brilliant minds I think of as my guiding lights. Among them was Erik Naggum:

Why are we even _thinking_ about home computer equipment when we wish to attract professional programmers? in _every_ field I know, the difference between the professional and the mass market is so large that Joe Blow wouldn’t believe the two could coexist. more often than not, you can’t even get the professional quality unless you sign a major agreement with the vendor — such is the investment on both sides of the table. the commitment for over-the-counter sales to some anonymous customer is _negligible_. consumers are protected by laws because of this, while professionals are protected by signed agreements they are expected to understand. the software industry should surely be no different. (except, of course, that software consumers are denied every consumer right they have had recognized in any other field.) …they don’t make poles long enough for me want to touch Microsoft products, and I don’t want any mass-marketed game-playing device or Windows appliance _near_ my desk or on my network. this is my _workbench_, dammit, it’s not a pretty box to impress people with graphics and sounds. when I work at this system up to 12 hours a day, I’m profoundly uninterested in what user interface a novice user would prefer.
Erik Naggum, comp.lang.lisp. Feb. 16, 1997. (Emphasis mine.)

And so, here we are, deskilled craftsmen, flippers of bits.  Some of us fungible today, some tomorrow.  Still performing the same old menial tasks by mouse instead of by lever — the so-called Computer Revolution notwithstanding.  Still “turning steam engine valves by hand.” Still writing the same, dreary boilerplate code, again and again. On QWERTY keyboards…

You have probably heard of Douglas Engelbart: one of the very, very few genuinely great minds of the computing field.  He is best known as the inventor of the computer mouse – but in fact, this man created just about all of the conceptual underpinnings of what we now think of as the standard human-computer interface.  Arguably, he is single-handedly responsible for the very notion of interactive, visual computing.  Engelbart presented his ideas to the public in one long demo session on December 9, 1968.  This demo is known today, quite appropriately, as “The Mother of All Demos.”

If you watch the Mother of All Demos – which you should – you will notice the piano-like device sitting to the left of the conventional keyboard:

A closer look:

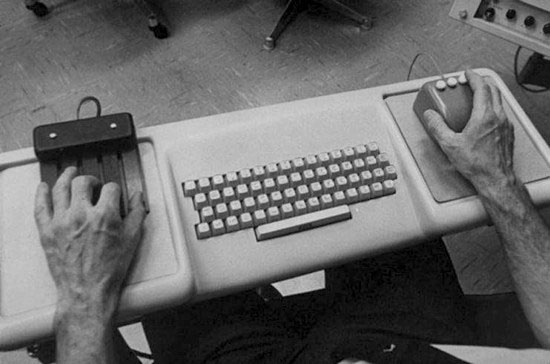

In use:


The above gadget is known as a chorded keyboard, or chorder.  In Engelbart’s computing environment, it supplemented, rather than replaced, the traditional typewriter keyboard.  Most of Engelbart’s contemporaries saw the chorder as a somewhat naive engineering mistake.  Among them was Alan Kay:

In Alan Kay’s metaphor, the problem with bootstrapping in Douglas Engelbart’s Augmentation Research Center was that while “Engelbart, for better or for worse, was trying to make a violin,” “most people don’t want to learn the violin.” User-friendliness, not coevolutionary learning, became the norm in the design of human-computer interfaces.
Thierry Bardini, Bootstrapping: Douglas Engelbart, Coevolution, and the Origins of Personal Computing. (p. 215.) (Emphasis mine.)

As far as I can tell, this is still the mainstream view today:

Today, human-computer interaction is focused on ease-of-use and learnability. Ideally, people should be immediately effective with a computer the first time they use it. The emphasis is on usability – without the necessity of training. The exact opposite of Engelbart’s approach. Engelbart’s dilemma is that his philosophy produced some of the best computer technologies of our age (e.g. mouse, windows, word processing, etc.), but the full realization of his vision is completely counter to way interaction designers think of computers systems today. In fact, Engelbart’s belief in efficiency over ease-of-use places him in the fringe of computer interaction design today. That’s sad considering he’s done more for interaction design than any else I can think of.
Richard Monson-Haefel, “Engelbart’s Usability Dilemma: Efficiency vs Ease-of-Use.

And yet, there were those who believed that there is something to be gained by breaking with the typewriter tradition.  Why should the mechanical constraints of nineteenth-century clockwork limit today’s user interfaces?  Among the few brave souls who “put their money  where their mouth is” was Cy Endfield – American (later, British) screenwriter, film director, theatre director, author, magician and inventor. Endfield, a true polymath, created the Microwriter – a pocket word processor equipped with six keys, intended to be operated with one hand:

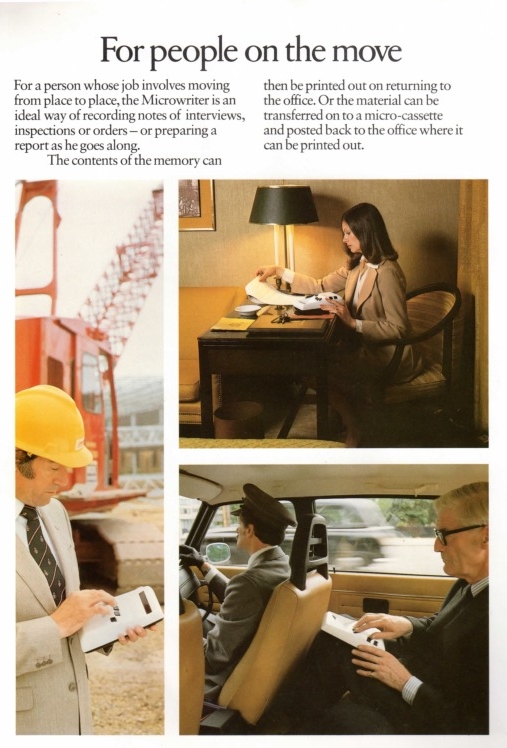

At first glance, this device resembles the familiar stenotype.  However, the latter was never meant to be a general-purpose text entry system.  Stenotypes use syllable-based encodings, narrowly specialized for transcribing human speech.  Endfield’s Microwriter was something rather different: a genuinely-original, alphabet-based, general-purpose text entry system.

The Microwriter’s use of one – rather than both – hands seems like a shortcoming, until you realize that the device was designed for maximal portability – at the very dawn of the age of personal computing!  It was really intended to replace a traditional paper clipboard, rather than a typewriter:


Endfield’s chording system was of a very elegant design, which balanced ergonomics with mnemonic simplicity:

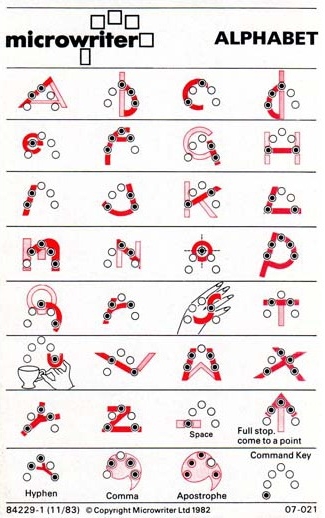

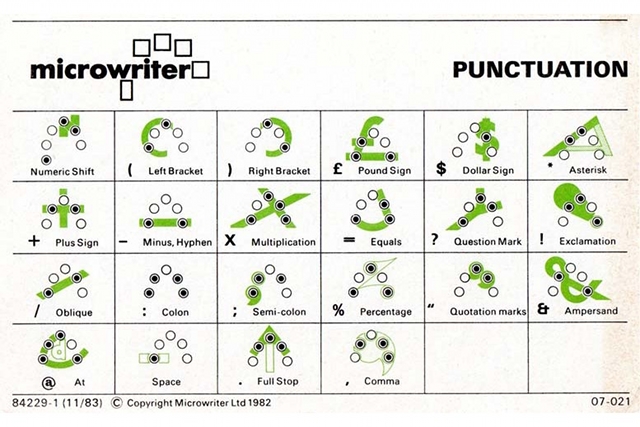

Volume One of the Microwriter User Guide contains a miniature crash-course in the use of Endfield’s writing system.  This document is perhaps the cleanest and most imaginative piece of technical writing that I have ever come across:

There have been other commercial and academic attempts at chorded keyboards, but this one happens to be the earliest (that I am aware of) which reached actual production and was placed on the market (however briefly.)  It is also the only one which I have had the good fortune to actually hold in my hands:

This rather unimpressive “hello world” was achieved after around fifteen minutes of practice.  The speed is a fraction of my QWERTY typing speed, but is a near-match for my handwriting on a good day.  What would it have been like if I had been put in front of an Endfield keyboard as a small child, instead of a typewriter monstrosity?

And what if you could expect to find (or carry) a decent, non-wrist-destroying chorded typing device everywhere you go, at work sites, schools, etc.?  Clearly, that is not the kind of world we live in: century-old technological standards die hard.  But why is there so little interest among genuinely-professional computer users in an input device which maximizes speed and slows the destruction of the hands with which you work?  And I marvel at the absurdity of the miniature QWERTY keypads found on mobile phones!  Surely that is where the supremacy of the chorder would be indisputable.

Fascinating as the chorded keyboard is, its confinement to the ghetto of “crackpot technology” is but a symptom of the underlying disease: the total victory of the technological business model which caters primarily to the unskilled.

Naggum clearly saw the absence of professional computing equipment for what it is: a result of the erosion of the very concept of the craftsman, the skilled, non-fungible professional:

something important happens when a previously privileged position in society suddenly sees incredibly demand that needs to be filled, using enormous quantities of manpower. that happened to programming computers about a decade ago, or maybe two. first, the people will no longer be super dedicated people, and they won’t be as skilled or even as smart — what was once dedication is replaced by greed and sometimes sheer need as the motivation to enter the field. second, an unskilled labor force will want job security more than intellectual challenges (to some the very antithesis of job security). third, managing an unskilled labor force means easy access to people who are skilled in whatever is needed right now, not an investment in people — which leads to the conclusion that a programmer is only as valuable as his ability to get another job fast. fourth, when mass markets develop, pluralism suffers the most — there is no longer a concept of healthy participants: people become concerned with the individual “winner”, and instead of people being good at whatever they are doing and proud of that, they will want to flock around the winner to share some of the glory.
Erik Naggum, comp.lang.lisp. Jul. 15, 1999.

In the mind of today’s technological entrepreneur, the ideal user (and employee) is semi-skilled – or unskilled entirely.  The ideal user interface for such a person never rewards learning or experience when doing so would come at the cost of immediate accessibility to the neophyte.  This design philosophy is a mistake – a catastrophic, civilization-level mistake.  There is a place in the world for the violin as well as the kazoo.  Modern computer engineering is kazoo-only, and keyboards are only the most banal example of this fact.  Far more serious – though less obvious – problems of this kind tie our hands and wastefully burn our “brain cycles.”

Professional equipment, whose mastery requires dedication and mental flexibility, may not be appropriate for casual users.  But surely it is appropriate – in fact, necessary – for professionals?  Just why is this idea confined to crackpots shouting in the wilderness?  I hope to learn a definitive answer to this conundrum some day.

Some people said, after reading this: “He thinks that computers ought to be costly and difficult to use.” Sorry, idiots. The message here is that a computer system should maximally reward learning. (The way Emacs does.) And that this should certainly be true of a computer one uses for 8-14 hours a day, for decades.

This entry was written by Stanislav , posted on Wednesday May 23 2012 , filed under Distractions, Hardware, Hot Air, Idea, NonLoper, Philosophy, Photo, ShouldersGiants, SoftwareSucks . Bookmark the permalink . Post a comment below or leave a trackback: Trackback URL.

67 Responses to “Engelbart’s Violin”

  • ASV says:

    Wow, this is all interesting to me! I just recently noticed that there is software to do this on a touchscreen. Now I’m learning how to, thanks to you and metafilter.

  • Chris Rainey says:

    I was the co-patent holder of Microwriting with Cy Endfield (film director – Zulu). 25000 people purchased the Microwriter and the follow on machine the AgendA which was a true pocket organiser, diary, alarm etc and was a fore runner to many of the current machines and was manufactured from 1987 to 1991. It only failed because of the economic downturn of the early 1990’s when Sir Mark Weinberg withdrew from the project after investing a lot of money in a new machine which over stretched the finances of the company. The CyKey (the name is a tribute to Cy Endfield) is still available as an add on to a PC or Mac and was developed to fill a gap and was developed by us here in Devon. Basic Microwriting can be mastered in about 20 minutes by most people because of very clever mnemonics which Cy created; based on something we all already know-the shape of the letters!

    • Stanislav says:

      Dear Chris Rainey,

      Thank you for your efforts in helping to create the Microwriter and its successors!

      I am glad to learn that you are still in this business. I do, however, wish that the CyKey were a word processor like the Microwriter, rather than a PC keyboard replacement. Personally, I would pay good money for a modernized Microwriter-like gadget. There is great potential in dedicated, high-quality hardware created for a clear purpose. Consider, for instance, the Amazon Kindle. I would dearly love a dedicated word processor which is usable in bright sunlight (e-ink or the like) and runs for months on one battery charge, never crashes, presents no distractions, and, shortly, isn’t a PC. Not being a PC (or, more specifically, not running a PC operating system) is a truly under-rated and beautiful feature in any gadget.


      • Veky says:

        I own a Kindle. I would like to bust a few myths here.

        It is usable in bright sunlight, but only because you refresh the display once every few minutes (when you turn the page). Whenever you are entering text, it is so slowly updating to be almost unusable. That’s why newer e-ink systems have given up the keyboard entirely. Usable word processor on this device is impossible.

        It doesn’t run for months on one charge if you really use it. (Amazon says: battery life projections are based on the assumption of half an hour of use a day. I mean, really? People don’t read for more than 30 minutes??) I do use it, and it runs about a week. It is huge compared to a smartphone, but that “months” myth make some people have unreasonable expectations. It had that effect on me.

        Oh, and it does crash. OK, it doesn’t _crash_, it just resets. But it’s the same. It’s unusable for a few minutes when it does that. Again, people who say “it doesn’t crash” are probably using it much less than a PC. I use it about the same, and I can tell you that my PC crashes a lot less.

        About distractions, well. Unless you count the crashes, I guess you’re right – up to a point. I mean, there are thousand documents on my Kindle to read. If that’s not a distraction, I don’t know what is. :-]

        It does run a PC operating system. Of course. http://www.turnkeylinux.org/blog/kindle-root What do you smoke? :-D

    • I have been using the microwriting system since the days of the Microwriter and have worn out my AgendA, so I have written an iPad app, with the support of Chris Rainey. I am about to offer it up to Apple for Beta testing, but the website is live and anyone interested can take a look and send me emails from the site http://siwriter.co.uk

      Comments wanted !

      Many thanks.

      Simon Anthony ( August 2013 )

      • Stanislav says:

        Dear Simon Anthony,

        This is beautiful work, and is a considerable improvement over the abomination of QWERTY keyboards on touch screens. However, the very concept of a keyboard without tactile keys is a serious industrial mistake, not unlike leaded gasoline. It is likely that multiple generations of people will end up paying for it, with their physical and mental health.


  • fenn says:

    Traditional chording keyboard text entry is limited to about 2 characters per second at maximum, slower than even a typewriter keyboard. It’s just hard to press down all the buttons any faster than that. The Microwriter uses a scant 5 buttons, for a maximum of 5 factorial = 120 combinations. This tiny number of unique inputs limits the 5 button chorder to per-character input. It’s incapable of whole-word input such as used in stenography, so it will always be painfully slow to use.

    However, human hands have 22 degrees of freedom, giving a theoretical maximum of 44 factorial = 2658271574788448768043625811014615890319638528000000000 two-handed combinations. This enormous potential is at hardly utilized even by stenography, with its two rows of keys, but it’s at least enough to type every word stem in the english language. Once you have a sufficient number of inputs (I like the design of http://homepage2.nifty.com/perky/index.htm ) it then becomes a tradeoff between time invested in learning to use the device and time wasted by not knowing more advanced key combinations. One could spend near infinite amounts of time learning and creating more and more key combo to phrase mappings, so how much time should one invest in memorizing key combinations?

    The reason most people haven’t gotten interested in stenography or chording keyboards is that there is no ready-made path to just start using one. The common perception is that there’s no money to be made by selling weird keyboards for productivity. You have to build your own out of a pile of switches and wiring. This is really a pathetic situation considering how simple the technology is and how easy it would be for an entrepreneur to get started.

    If you’re interested in using chording keyboards today, development of an open-source stenography platform has begun over at http://ploversteno.org

    • MDude says:

      Do you think something like Ponoko would help? I think they only produce unassembled kits, but that seems less intimidating than having to produce a device from scratch.

      • Stanislav says:

        Dear MDude,

        Maybe. Or eMachineShop. Or the like.

        Keyboards are surprisingly hard to get just right from a mechanical point of view, though. And the materials need to be of top-notch quality to stand up to years of use and abuse.


    • Toafan says:

      No, five buttons does not give you five factorial combinations. Each button can be either up (unpressed) or down (pressed); so one button gives you two possible states (two to the first), two buttons gives you two times two is four possible states (two to the second) (while the first button is up, the second button can be either up or down, and the same when the first button is down), three buttons gives you two times two times two is eight possible states (two to the third), and so on. Five buttons would give you two to the fifth or 32 possible states–which is just about enough to fit the entire English alphabet and some interesting punctuation, by the way.

      (I’m slightly embarrassed that I had to actually work it out.)

      I’m not sure where you get 22 degrees of freedom for the human hand, but even with that number, if one degree of freedom is state-A-or-state-B, using both hands gets you a number ‘only’ fourteen digits long (as opposed to that unreadable easily-twenty-digit-and-probably-lots-more monstrosity you posted), ‘only’ two to the 44th which is some 17 (US) trillion.

      Of course, with both of those, you have to reserve one state (potentially two for two-handed input?) as ‘neutral’, ie not doing anything. This is more onerous with the smaller numbers, but it’s also completely unavoidable.

      (TL;DR: your math is embarrassingly wrong, it’s two to the N, not N factorial.)

      Interestingly, the Microwriter actually pictured above appears to have six buttons (which gives two to the sixth = 64 possible states), but the documentation shown seems to only picture five. Not sure what’s going on there. Maybe the sixth button is used as some sort of “mode locking” button, to get two groups of 32 possible states each used for something different.

  • Jason says:

    Interesting. Thanks.

  • Near says:

    So true

  • Martin says:

    Reminds me of Steve Roberts who devised a system (in the late 80s) to type out articles in binary while cycling.


    Thanks for derailing me to try to come up with some other novel input devices and going on long bike tours…

  • Bill Buxton says:

    Interesting comments – much to agree with, but also others that I would question. Yes, Engelbart was unquestionably extremely important in his contributions to interaction, and I very much like that you point out that “easy to use” was decidedly not his objective. However, your statement, “Arguably, he is single-handedly responsible for the very notion of interactive, visual computing” is somewhat disrespectful of the arguably even greater contribution of the (earlier) work from Lincoln Lab (http://www.billbuxton.com/Lincoln.html). The accomplishments of one does not diminish the other. So, while I really like your pointing out the importance of appreciating our history, it is even more interesting when we begin to appreciate its full richness.

    You write, “Modern computer engineering is kazoo-only, and keyboards are only the most banal example of this fact.” I find this puzzling, since the keyboard is one of the things that still does require a high level of skill to operate. And if your case is that it requires two hands, the little acknowledged fact is that so did Engelbart’s. His physical keyboard had 7, not 5, buttons: 2 on the mouse, operated by his right hand, and 5 on the chord keyboard, operated by his left. The encoding that he used was essentially 7-bit ASCII.

    Your contrasting Engelbart’s chord keyboard with the Microwriter is useful in that it highlights the fact that all chord keyboards are not created equal. The coding on the Microwriter was much easier to learn and use. But then, from one possible reading of your essay, to be consistent, you might hold that against it. (I know you are not, I am just trying to make a point regarding the questino of ease of use: it does not have to imply going the path of the kazoo rather than violin. The violin is not made more diificult to learn than is neccesary to serve the full potential of its purpose. That helps us zero in on the real issue: the question has more to do with the the purpose is, and how the tool can best help the human in realizing their full potential to achieve it. And, the less that operation of the tool takes away resources from focusing on that purpose, the better.)

    As for one of the comments that says that the best that one can do with a chord keyboard is two characters a second, may I suggest that you count how many notes Dizzy Gillespie could play in a second on his 3-button chord keyboard, a.k.a. his trumpet. In fact, the fastest text entry on a keyboard of any type has been accomplished using a chord keyboard.

    Finally, if you want the details of how Englebart’s chording worked, or to learn about other chord keyboards – including the first “typewriter in your pocket” (made by a guy named Livermore in 1857!!!), see http://www.billbuxton.com/input06.ChordKeyboards.pdf

    If you want to see more images of the Microwriter, including the CyKey and Agenda, as well as documenation etc., or any of the many other chord keyboards that I have in my collection, see: http://research.microsoft.com/en-us/um/people/bibuxton/buxtoncollection/

    My closing comment is my oft repeated mantra: everything is best for something and worst for something else. We only begin to understand a technology or technique when we know both sides equally well, and the grey areas in between.

    Thanks for initiating the concersation, and providing the opportunity to comment.

    • Brian Dunbar says:

      I find this puzzling, since the keyboard is one of the things that still does require a high level of skill to operate.

      I question this assertion.

      We’ve all watched children pick up and use a keyboard and mouse: click, type, click again. This does not appear to require a high level of skill.

      • Tom says:

        Well yes Brian, if you put it like that maybe so.

        I’ll be off to hire a load of children to replace all of my programmers as there is clearly no difference in speed, familiraity of how to do stuff with it or anything at all between the two.

        After that I’ve decided to stop thinking about piano lessons as I earlier saw a child clicking away on one and this action did not seem to require a high level of skill.

  • Cosman246 says:

    Very interesting ideas, as usual, and hits the nail on the head!

    • Cosman246 says:

      The only problem I see is that I’m left-handed. Also, I wonder how things like the Meta key would be replaced or represented by this

  • will_a says:

    The “chorded keyboard and mouse” combination is actually incredibly prevalent in computing today. Not that a different keyboard is actually used (though sometimes enthusiasts will obtain modified versions of the standard keyboard, but the basic template is the same). Rather, the software applications treats a standard keyboard as a chorded keyboard.

    What software applications? Video Games. Particularly First-Person Shooter (FPS) and Real Time Strategy (RTS) games, which require very fast and precise movements. The WASD+Mouse combo for FPS games has proven to be highly effective, and it is “chorded” in the sense that one can use the different movement keys (W,A,S,D) in combination to effect 360 degree movement, and they can also be used orthogonally with other action keys (reloading, firing, opening doors, etc.). RTSs function similarly (even if the gameplay experience is radically different).

    The performance boost that this mode of interaction offers makes a big difference in gaming, because the flow of play could change in microseconds. Because development operates on larger time scales, those microseconds aren’t noticed (even if, over time, they actually do make a significant difference) Programmers in the main will only care about having an efficient UX setup once we have development environments which have the speed and interactivity of video games.

    • Stanislav says:

      Dear will_a,

      > Programmers in the main will only care about having an efficient UX setup once we have development environments which have the speed and interactivity of video games.

      You are quite right about this. This is just the kind of environment that I am trying to create. Programming should be a dynamic and real-time experience, like shaping a ball of plasticine.


      • Jack says:

        What? Are you now arguing that complex computing and planning tasks should now be made mindlessly simple like playing with silly putty?

        Designing software, like designing a skyscraper, planning brain surgery, should in fact become the opposite of playing around. They require thought, planning, accuracy.

        Like others have said, the keyboard already is professional equipment and takes years of learning to become truly proficient.

        The problem device, the one that focuses everything on silly-putty ease of use at the expense of sophistication, is the touch-screen.

  • [...] dazu in diesem Artikel bei loper-os.org / via Presurfer Kommentare [...]

  • ASV says:

    If there’s not already some way to use ccv to do this, the programming of such a thing would be beyond my capability but I’d love to test it out. I have a bunch of webcams just laying around, anyway.

  • Brian Dunbar says:

    From the ‘Missing the Point’ department …

    Perhaps you are now sitting in front of your lovingly-maintained heirloom IBM “Model M” keyboard

    You can get _new_ Model M keyboards – Unicomp licenses the design from IBM.

    It is tempting to find a chorded keyboard to supplement my existing setup.

    • Stanislav says:

      Dear Brian Dunbar,

      I’ve seen the Unicomp keyboards. The build quality falls somewhat short of the original.


      • Brian Dunbar says:

        The build quality falls somewhat short of the original.

        I will allow this is true. It is still miles better than the keyboard the IT department puts on your desk by default.

        • Chris Smith says:

          Have you tried the very high end Cherry keyboard such as the G80-3000MX?


          I had an IBM model M for about 10 years until I got a PC without a PS/2 hole to poke it in. Very depressing. It was replaced by a G80 which was great, but the mechanical switches and side of a desktop PC both annoy my wife.

          All were recently replaced with an old ThinkPad T61 which is quite good as well (for a laptop).

          For the keyboard obsessed, there is a nice web site for you here:


          • Stanislav says:

            Dear Chris Smith,

            You can use the PS/2 boards with an adapter. This one is guaranteed to work. I am happily using a keyboard which is older than I am, and intend to do so for as long as I live. The thing is nearly indestructible.


          • Cosman246 says:

            I’ve been trying to find out how to get Meta key keycaps, and perhaps Hyper and Super keycaps as well.

            Or maybe (gasp) a Space-Cadet Keyboard

    • Jon says:

      Unicomps are IBM keyboards. Unicomp bought the actual tooling and machinery from IBM. They aren’t just making licensed clones.

      A late reply, but this should be cleared up.

      • JonB says:

        I have a Unicomp keyboard, bought at some great expense.

        This has a buckilng spring inside each key, but underneath it all is an evil membrane. Unless the Model M also uses a membrane, they are not the same. The Unicomp feels like a Model M, except its body creaks. However, the issue for me is that three of the keys are suffering from keybounce for some inexplicable reason, and because they are not discreet keyswitches, I cannot swap them out. And this keyboard is not even two years old, and has only had very light use.

        Obviously, I recommend not buying one.

        Back on topic. I have a MW4 sitting in my loft, along with a TV adapter and all documentation. Thanks to this interesting article, I am now planning to pull it out of storage and have another go at chorded typing. :)

        • Stanislav says:

          Dear JonB,

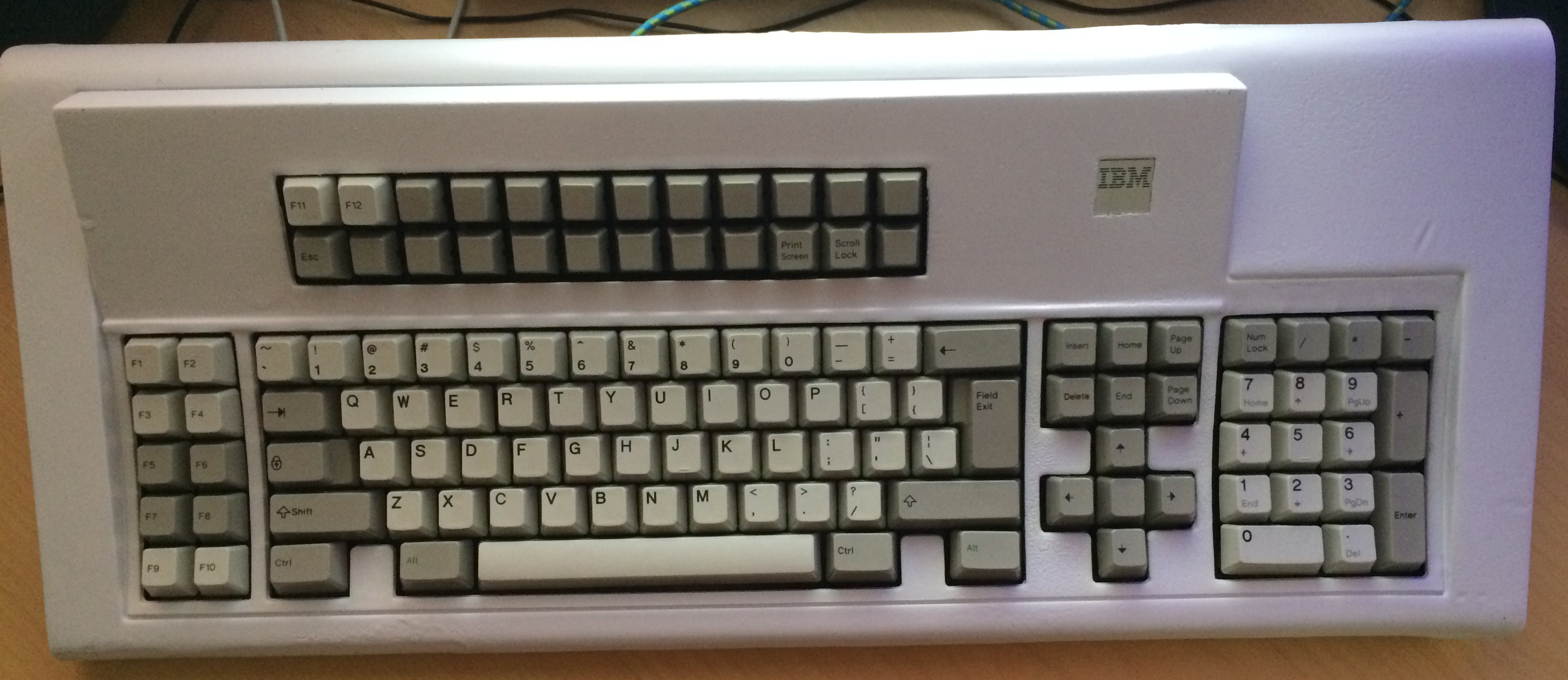

          I recently purchased and restored an IBM Model F, circa 1984. There are no membranes in it, and all of the parts – including the cylinders and pistons – come out for cleaning. (Use an ultrasonic bath, they’re great.) There are no fewer than three sheets of steel in it – you will need to clean, sand, paint. Use “appliance epoxy” for the plastic face, it gives a nice texture. I heartily recommend the “F”. There are no exposed electrical contacts, it laughs at dust, moisture, and will probably outlive me. And the mechanical action is second to none.
