Terraforming the "MyCloud Mini" : TTY.

"MyCloud Mini" is a ~$50, dual-core ARM, 256M RAM, 256M Flash, dual SATA box, in various respects similar to the famous PogoPlug.

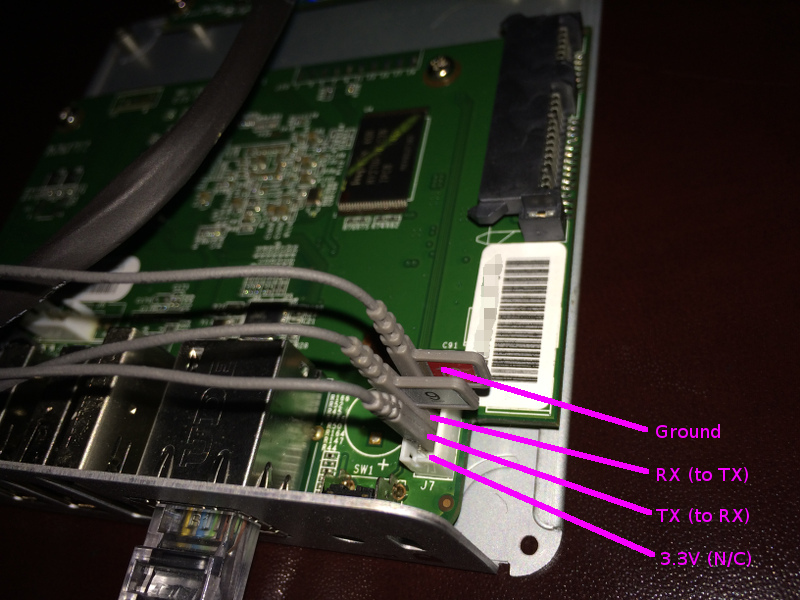

Use a standard (e.g., CP1202) TTL converter. And you will get:

Stage-1 Bootloader    1  28 10:36:29 CST 2011
Attempting to set PLLA to 750MHz ...
  plla_ctrl0 : 0x0000000A
  plla_ctrl1 : 0x000F0000
  plla_ctrl2 : 0x001D01A0
  plla_ctrl3 : 0x00000017
Setup memory, testing, Image 0
  Hdr len: 0x0001AC3C
  Hdr CRC: 0xB931AD17
U-Boot 1.1.2 (Oct 28 2011 - 10:44:29)
U-Boot code: 60D00000 -> 60D1AC3C  BSS: -> 60D1F2F4
RAM Configuration:
        Bank #0: 60000000 256 MB
SRAM Configuration:
        64KB at 0x50000000
NAND:256 MiB
*** Warning - bad CRC, using default environment
In:    serial
Out:   serial
Err:   serial
Setting Linux mem= boot arg value
Reading upgrade flag from NAND address 0x01ec0000 : 0
Hit any key to stop autoboot:  0
This entry was written by Stanislav , posted on Thursday June 02 2016 , filed under Bitcoin, Cold Air, Hardware, NonLoper, Reversing . Bookmark the permalink . Post a comment below or leave a trackback: Trackback URL.
