PCB Radiography Kindergarten, Continued.

This article is a continuation of “PCB Radiography Kindergarten”.


This was a second test-fire of that radiography system, using yet-another board where I already know where everything is (on account of having designed it.)

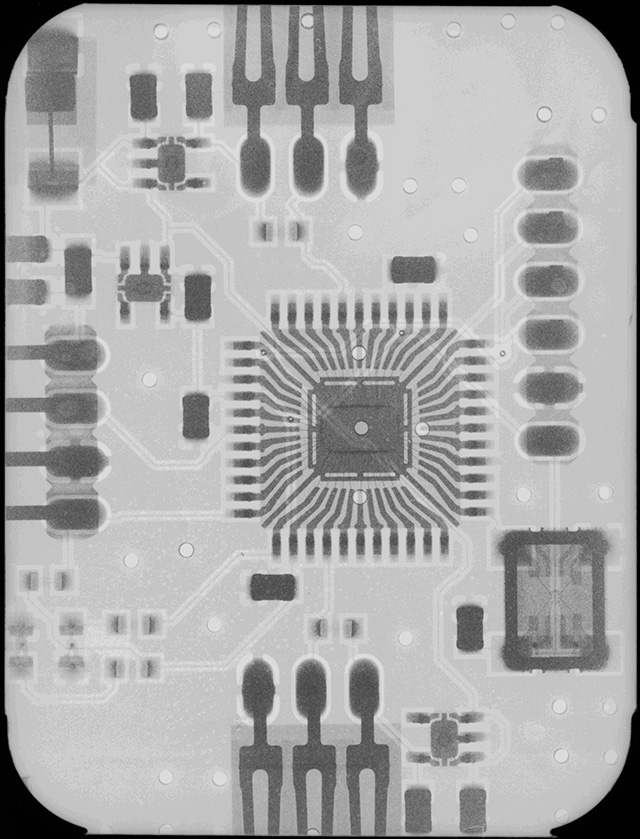

This time, the victim is a FG TRNG Mainboard:

Click for full resolution (Warning: 16MB)

FG Mainboard

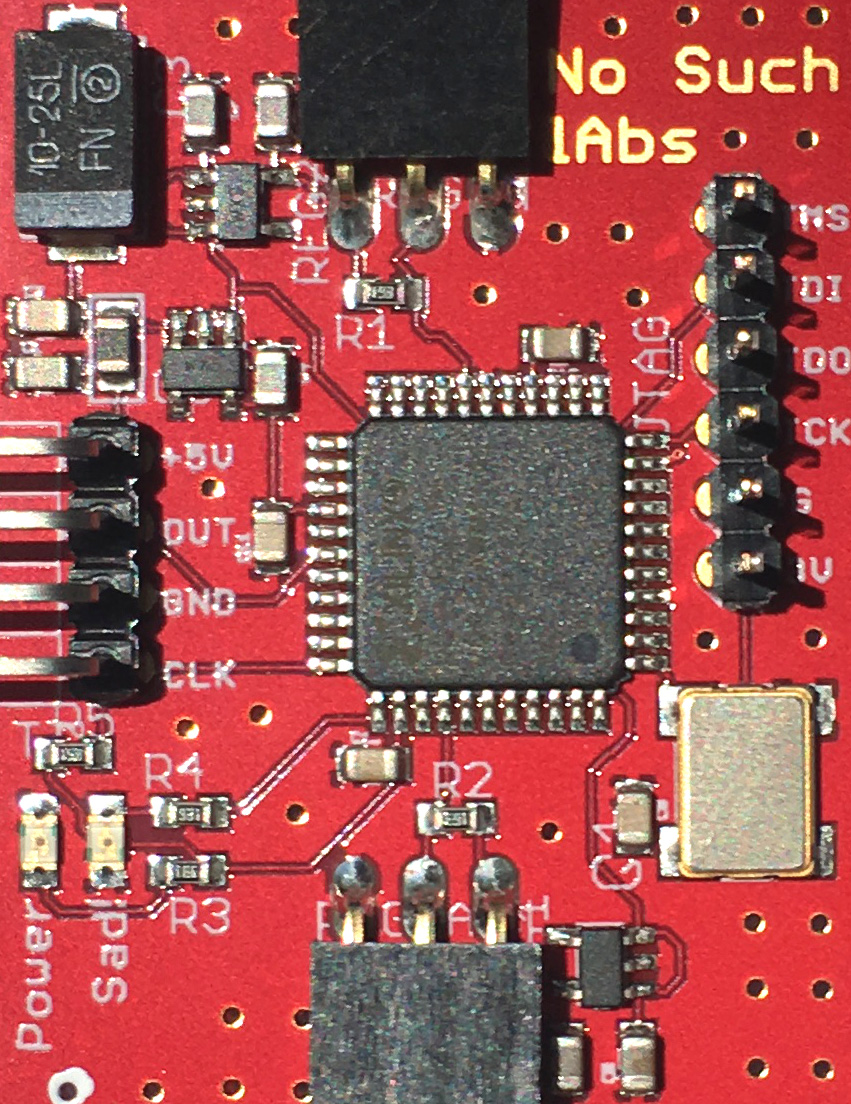

For comparison, a visible-light photograph of the same section:


FG Mainboard (optical)

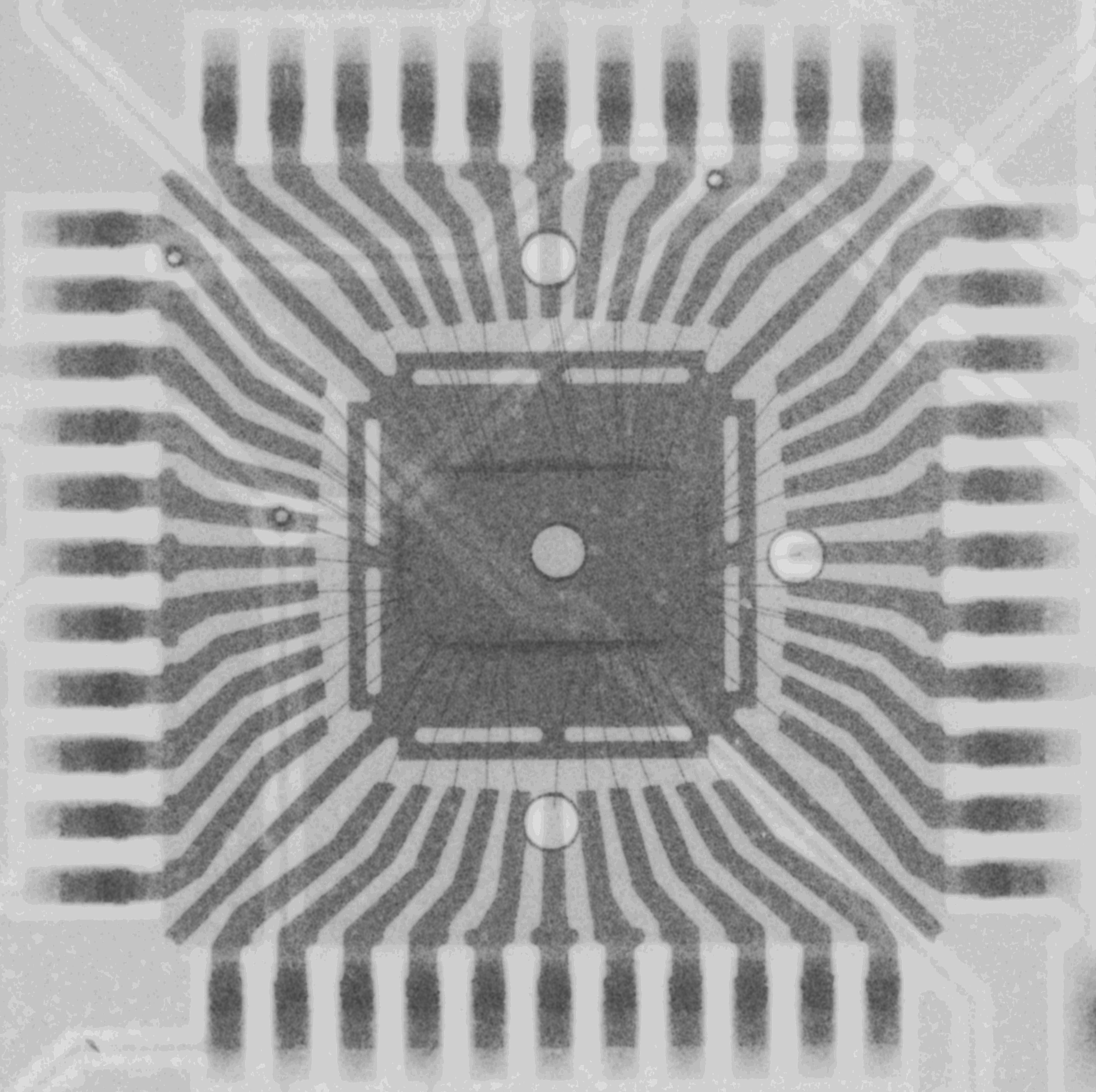

Detail of XC9572 CPLD:


FG CPLD

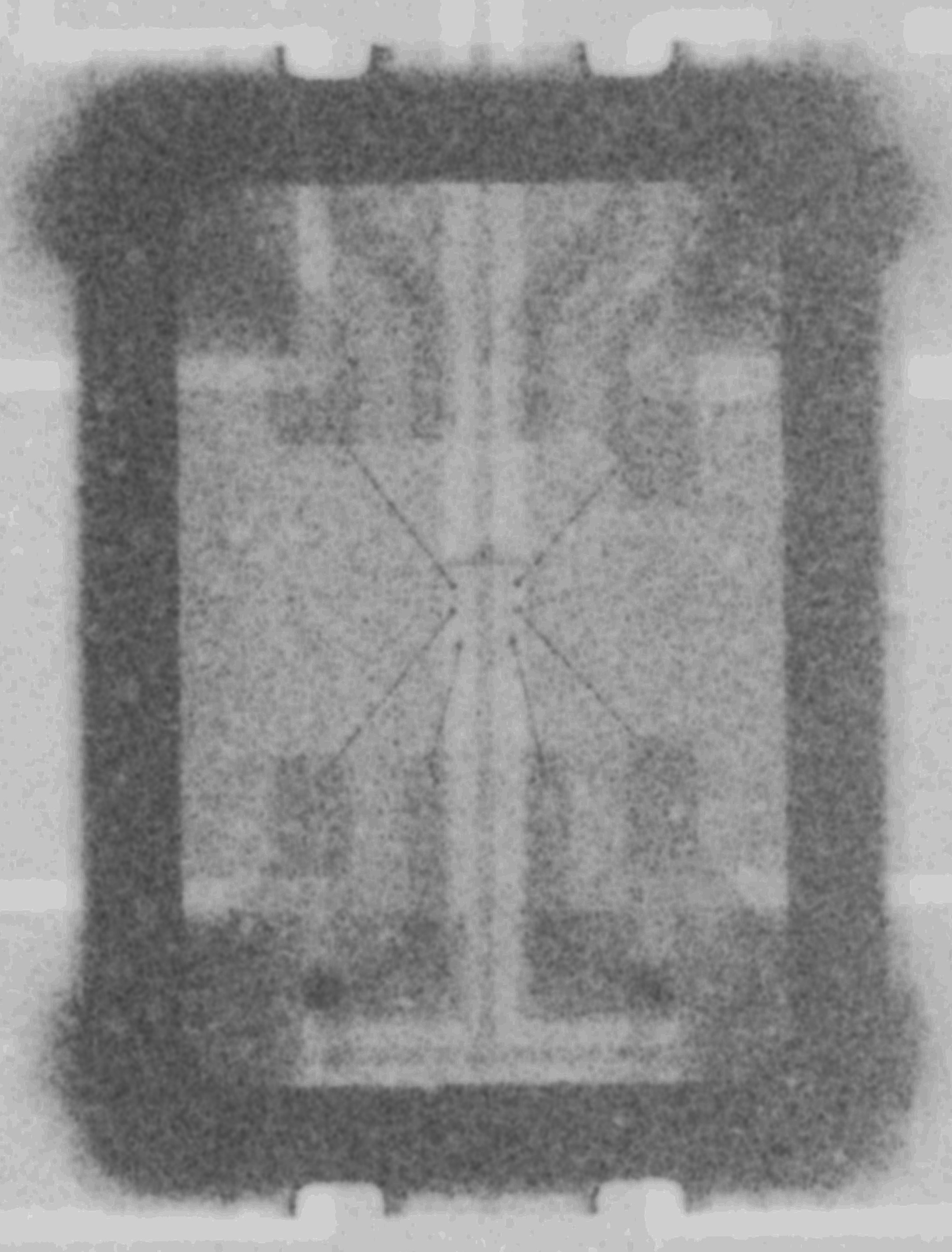

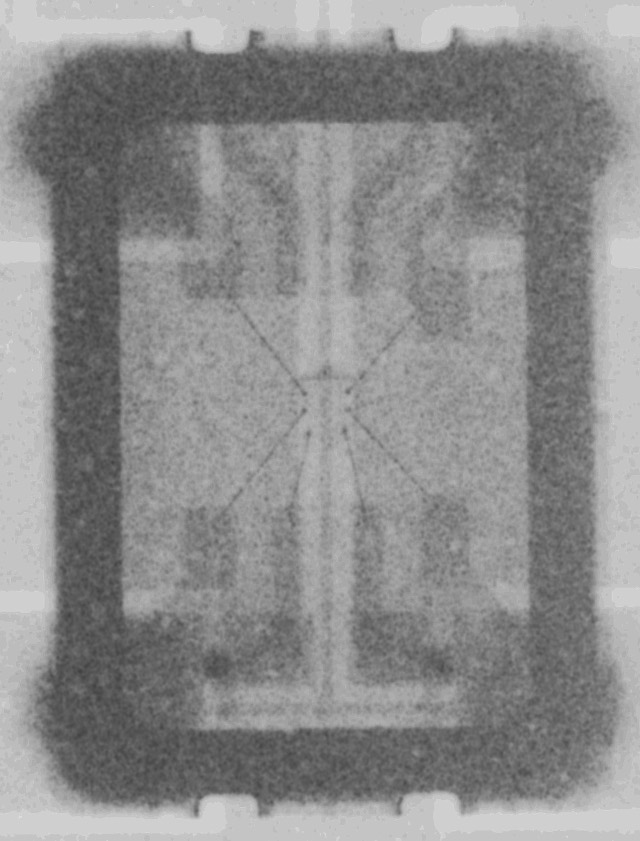

Detail of 14.7456MHz quartz resonator:


FG Resonator

Exposure: 100 sec. @ 32kV, 0.3mA @ 25cm; film: “Eco-30″.
