X-Ray Spectrography Kindergarten.

This article is a continuation of “X-Ray Microscopy Kindergarten.”.

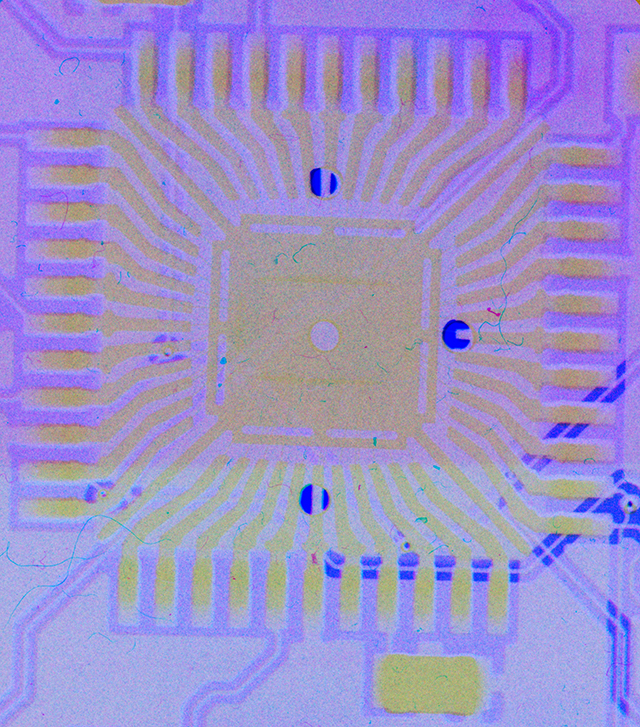

Preliminary experiment with multi-energy x-ray (colour channel combination), distinguishing materials by absorption at different wavelengths.

FG CPLD MultiEnergy Xray

The tube appears to exhibit some “heel effect” at the longer wavelengths.

Exposure: 75 sec. @ 35kV, 21kV, 20kV (R, G, B) film: “Eco-30″.
