Secrets of the Symbolics Console: Part 2

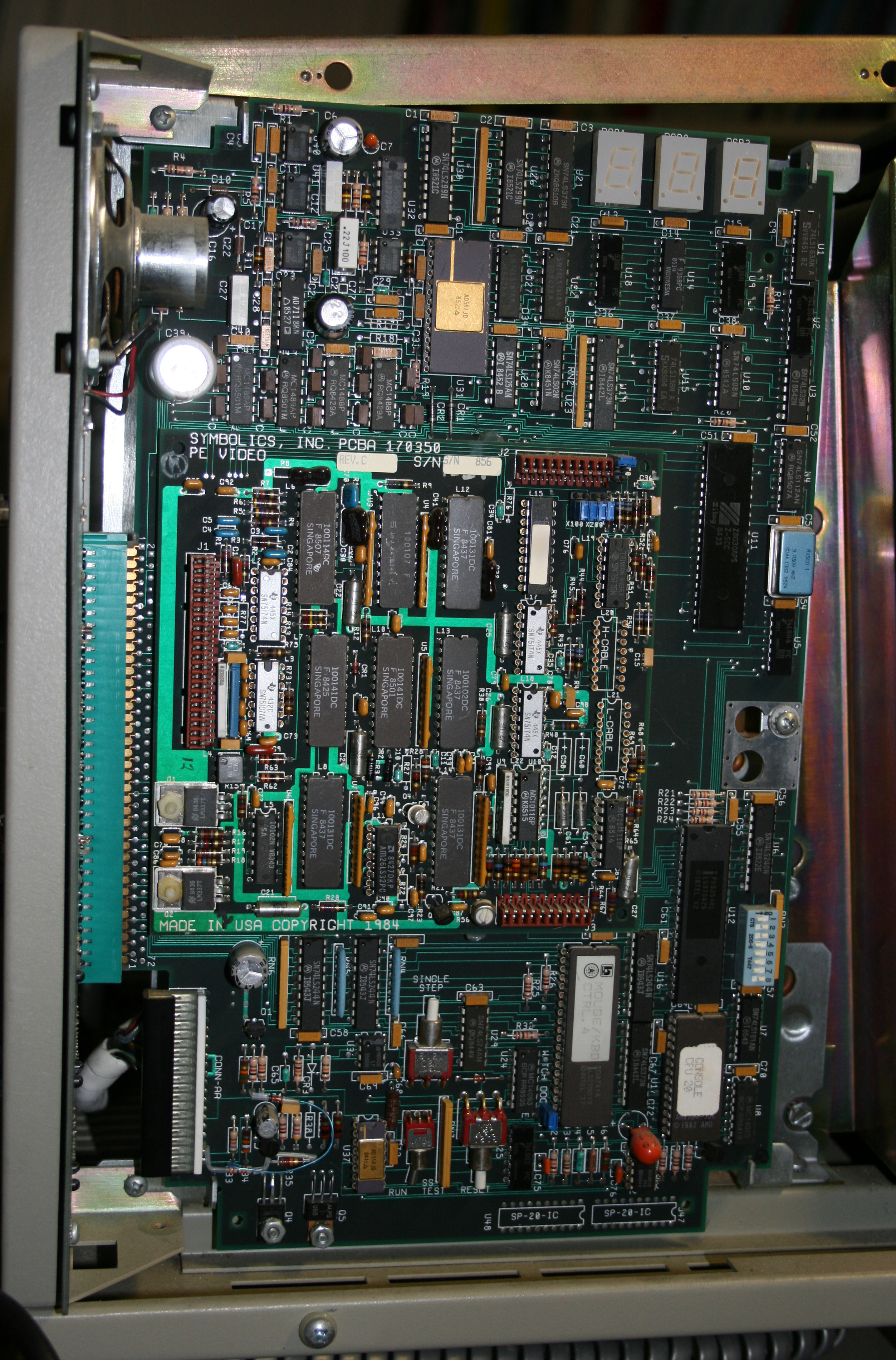

Let's take another look at the console. There are several boards inside, but this is the only one which deals in custom Symbolics protocols (as opposed to the widely-known intricacies of operating a black-and-white CRT.)

console controller board

The rough annotations are my own. Click on the pictures for super-size (~10MB!) images.

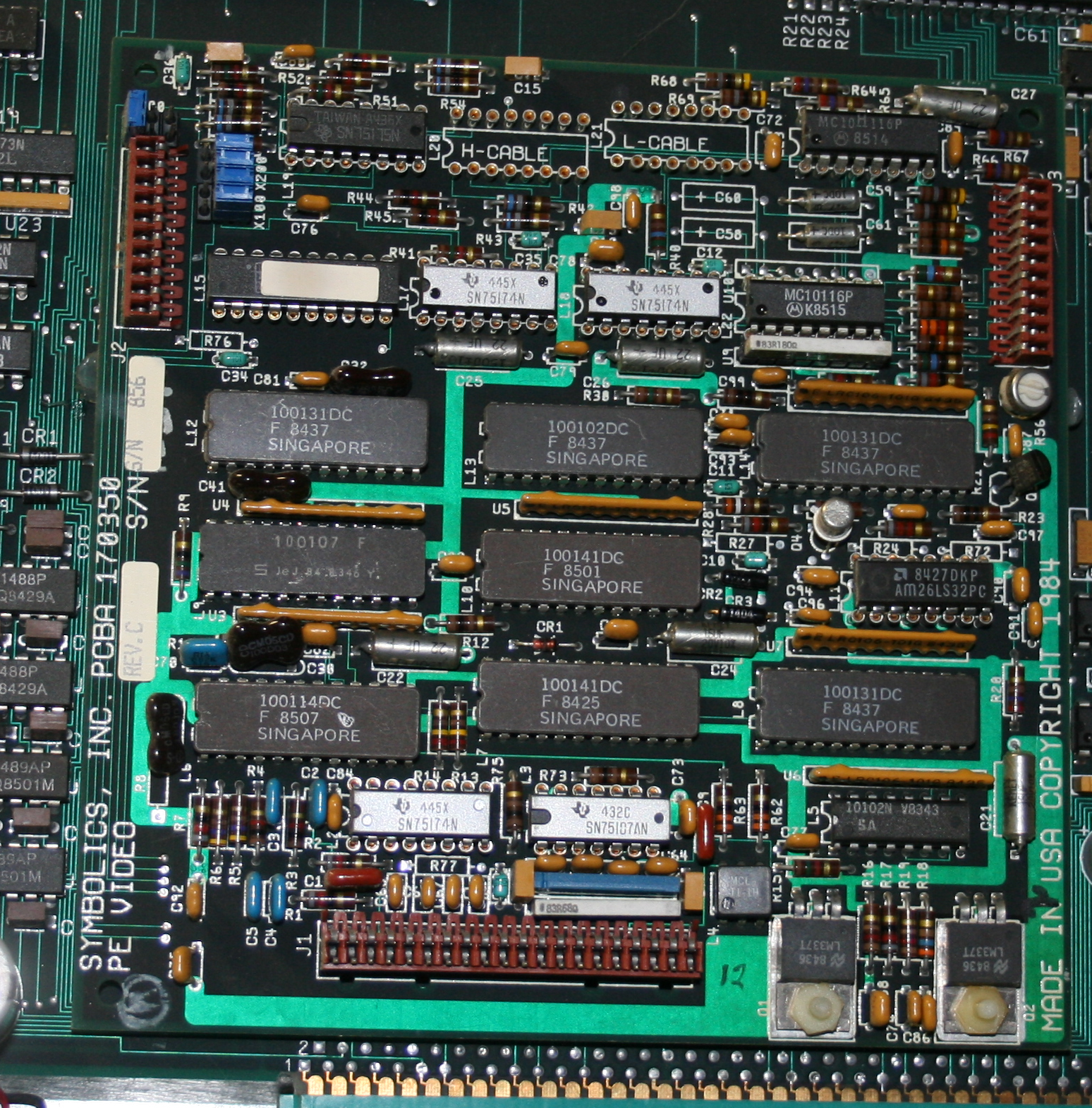

Once again, the Phase Encoded Video decoder board:

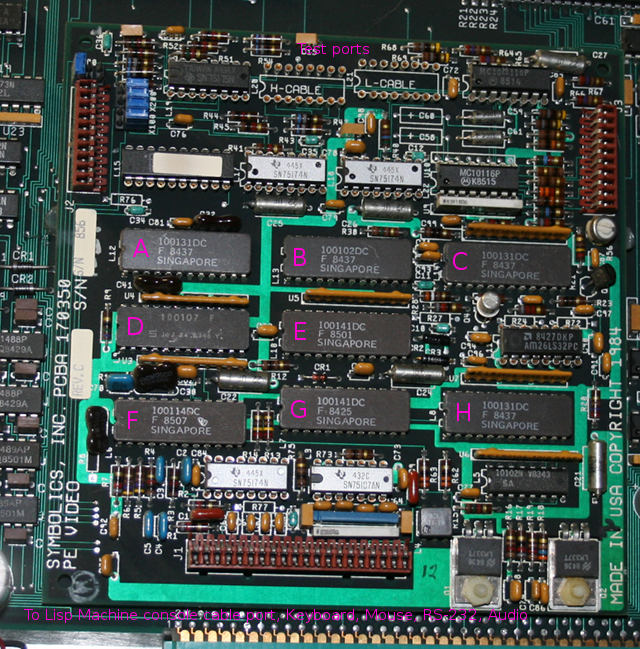

labeled PE decoder board
A: 100131 - Triple D-type Flip-Flops
B: 100102 - Quint 2-Input OR/NOR Gate with Common Enable
C: 100131 - Triple D-type Flip-Flops
D: 100107 - Quint Exclusive OR/NOR Gate
E: 100141 - 8-bit shift register
F: 100114 - Quint Differential Line Receiver
G: 100141 - 8-bit shift register
H: 100131 - Triple D-type Flip-Flops

The labeled chips are Emitter-Coupled Logic (ECL.) This explains the frequency of the video signal - 160MHz, Manchester-coded (80MHz data and clock) an astounding one for any entirely digital process happening in a machine of this vintage.

Now for the sad part: this board is hot-glued to its moorings in several places. Naturally, I could tear it loose, but I imagine that it was secured in this way for a reason. I would prefer to leave it in place, to ensure a working console in the immediate future. And so for now, my reverse-engineering efforts will focus on the transmission line (which I have been spying on through the console's video repeater port) and the video card of the 3620 machine itself.

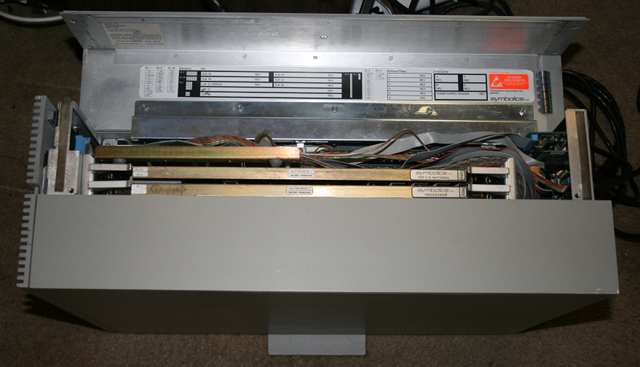

Let's open up the latter. The densely-packed internals look nothing like those of any PC:

The closed portion of the chassis conceals the (full-height ESDI) disk and the Lisp Machine's massive, exceptionally hungry power supply.

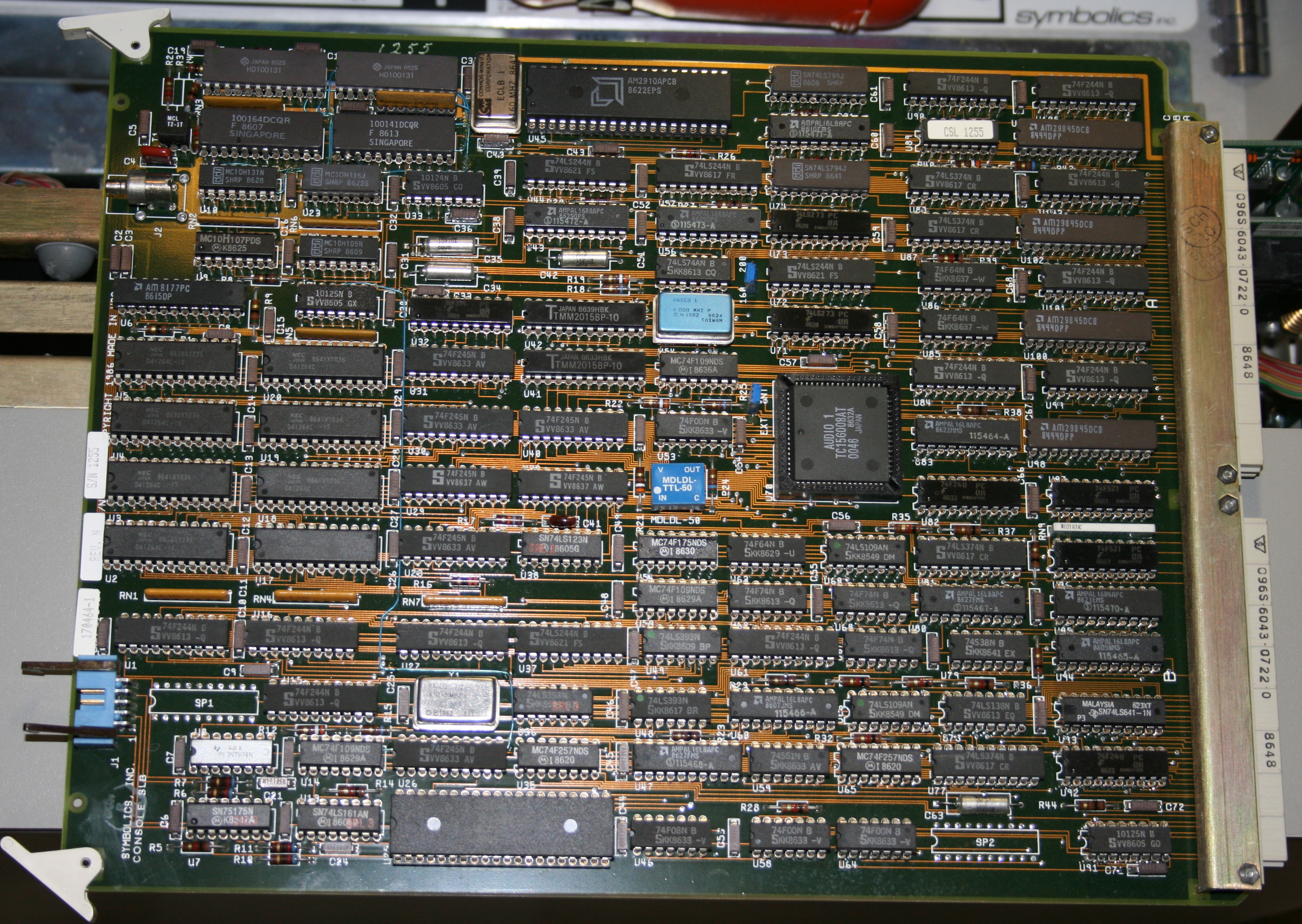

The console I/O board (which I have barbarously called a "video card") is obscured beneath the rainbow cable visible on the upper left.

Let's pull it out:

To be continued...
